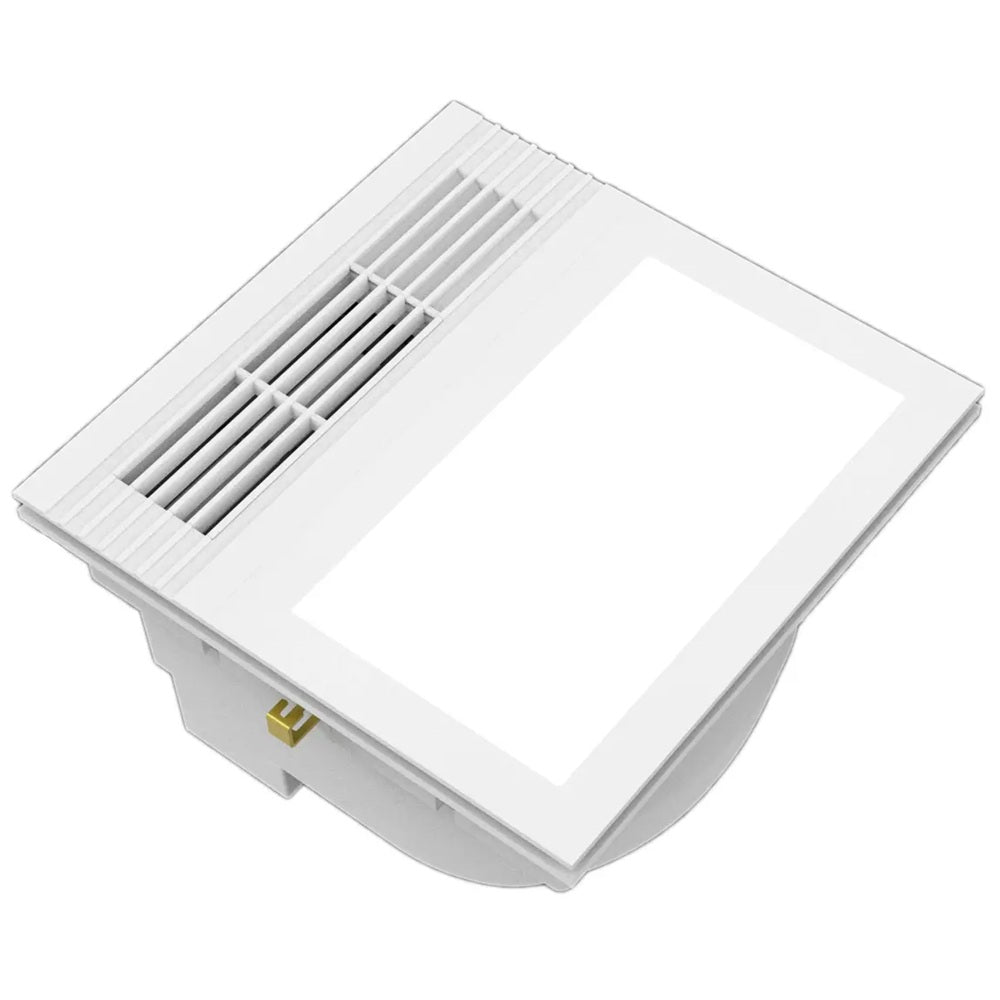

Extract Prime Mini 4 in 1 EC Bathroom Heater Tri Colour White

Product Description

The Vencha Extract Prime Mini 4-in-1 EC Bathroom Heater in White is a compact, energy-efficient bathroom heating and ventilation solution designed for smaller bathrooms and ensuites. Combining a powerful 2000W PTC heater, cooling fan, exhaust fan and integrated 12W LED light in one convenient unit, this versatile bathroom heater helps maintain a comfortable, fresh and well-lit space throughout the year. The advanced EC motor delivers efficient and quiet operation, while the 350m³/h exhaust airflow helps remove steam and moisture. Featuring selectable tri-colour LED lighting in 3000K warm white, 4000K cool white and 5000K daylight, the Extract Prime Mini offers flexible lighting to suit your bathroom. Additional safety features include thermal protection, an automatic heat cool-down cycle, a safety heat shut-off timer and a backflow prevention shutter. With its sleek white finish, compact design and 5-year warranty including 2 years of in-home support, this 4-in-1 bathroom heater, exhaust fan and LED light is a practical choice for modern Australian homes.

Features

• 4-in-1 bathroom heater, cooling fan, exhaust fan and LED light

• Powerful 2000W PTC heating for bathroom comfort

• Advanced EC motor for efficient, quiet operation

• 350m³/h exhaust airflow to help remove steam and moisture

• Integrated 12W LED light with selectable tri-colour lighting

• Three colour temperatures: 3000K, 4000K and 5000K

• LED light output of 900–1000 lumens

• Built-in thermal protection system

• 120-second exhaust run-on timer

• Automatic 20-second heat cool-down cycle

• 45-minute safety heat shut-off

• Backflow prevention shutter

• IPX2 water ingress protection rating

• Compact white design ideal for smaller bathrooms and ensuites

• Includes 4-gang wall switch, 3m aluminium duct, external grille, cut-out template and backflow prevention shutter

• 5-year warranty with 2-year in-home warranty

Important Note: When the exhaust function is switched on, it overrides the heating function for safe operation.

Specifications

• Brand: Vencha

• Model: Extract Prime Mini EC 4-in-1 Bathroom Heater

• Product Code: 5501024

• Colour: White

• Housing Material: Polypropylene (PP)

• Fascia Material: Polycarbonate (PC)

• Input Voltage: 240V

• Motor Type: EC motor

• PTC Heating Power: 2000W

• Exhaust Fan Power: 20W

• Cooling Fan Power: 20W

• Exhaust Airflow: 350m³/h

• LED Light Power: 12W

• Light Output: 900 / 1000 / 950 lumens

• Colour Temperature: 3000K / 4000K / 5000K

• Dimmable: No

• IP Rating: IPX2

• Duct Size: 100mm

• Warranty: 5 years, including 2-year in-home warranty

Dimensions

• Cut-Out Size: 275mm x 275mm

• Fascia Size: 300mm x 300mm

• Unit Depth: 170mm

• Minimum Installation Depth: 195mm

Parts Supplied

• 1 x 4-gang wall switch

• 1 x 3m aluminium duct

• 1 x external grille

• 1 x cut-out template

• 1 x backflow prevention shutter
