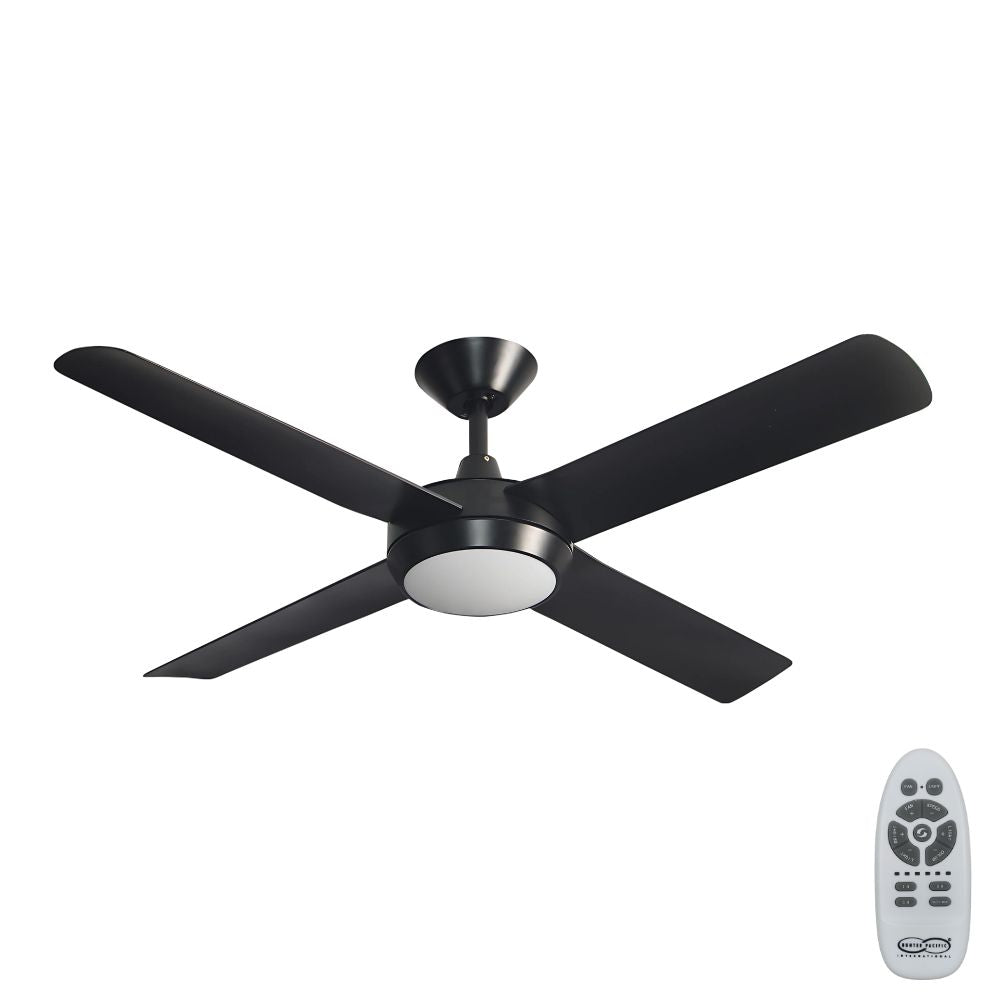

Concept DC 52" Fan 18W CCT LED Black

The Concept DC 52" Ceiling Fan delivers quiet, energy-efficient performance with a reliable DC motor, durable polymer blades and a dimmable 18W CCT LED light. Designed for indoor and fully sheltered outdoor areas, it offers smooth airflow, smart control options and year-round comfort.

Features

This fan includes a 6-speed remote control with sleep mode and a Summer/Winter reverse function. It features polymer blades, a dimmable 18W variable-white LED light (default 4000K), and variable dimming control via the remote. Smart home upgrades and a DC wall control are available. It is suitable for pitched ceilings up to 18° and comes with a 7-year warranty^.

Installation Locations

The fan is suitable for indoor, coastal and outdoor undercover spaces, provided it remains fully sheltered. It can also be installed in pergolas or protected outdoor areas where it is shielded from wind and rain. A minimum clearance of 2.1m between the lowest point of the blades and the floor is required.

Accessories (Sold Separately)

Smart control options include the HPI Pixie Module (PIXIEM098), Smart WiFi Module (WIFIM099) and a 240V DC Wall Control with 6 speeds (DCWC2409). Downrod options (26mm diameter with wire loom) are available in 910mm and 1800mm lengths in both white and black. For steep ceilings, a 38° ceiling kit is available in white (080) and black (083), along with a T-Hook for ceiling roses (009).

Product Range

The Concept DC range includes 48” and 52” models in white and matt black, available with or without integrated LED lighting. Models include: C345 (48” White), C350 (52” White), CL347 (48” White with LED), CL355 (52” White with LED), C351 (52” Matt Black) and CL356 (52” Matt Black with LED).

Extra Information

The fan uses a 153mm x 10mm 16-pole DC motor with high-grade copper windings and a silicone steel stator. Sealed bearings ensure quiet operation and long service life. The 132cm (52”) polymer blades have an 11° pitch.

Dimensions

The fan has a width of 1320mm, a height of 350mm and a canopy diameter of 173mm.

Warranty

The motor is covered by a 3-year in-home warranty, excluding cosmetic issues and corrosion unless reported within the first three months. An additional 4-year parts-only warranty applies to the motor. All DC electronic components, including the remote control system, LED lighting and accessory wall control, carry a 2-year in-home warranty. A 1-year warranty applies when the fan or its components are used in non-domestic applications.
